How to install piston rings?

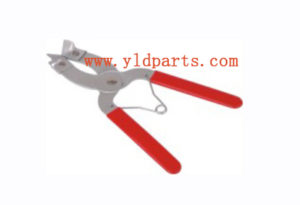

Firstly,prepare the below installation tool :

piston-ring-installion-tool

















Correct installation order should:

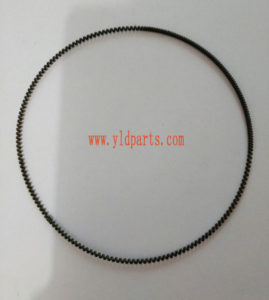

Expander—oil ring—2nd ring—top ring.

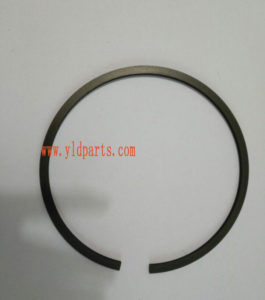

oil ring expanderoil-ring2nd piston ring





1st piston ring

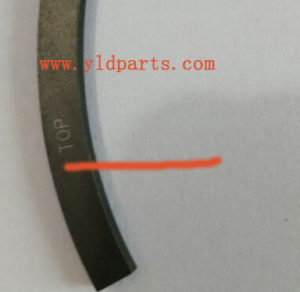

Checking the marks on the ring side, the marked side should face up.

top-marked





















When all rings are in the piston groove,move left and right to check the rings whether to get stuck in the groove.

Place piston ring gap toward 120” to each other.

piston-ring-installion-space

(A)  Top Ring Gap

(B)  Second Ring Gap

(C)  Oil Ring Gap

(D)  Piston Pin Hole

(a)  120°







Lastly, apply lubricating oil on the piston and ring groove.
